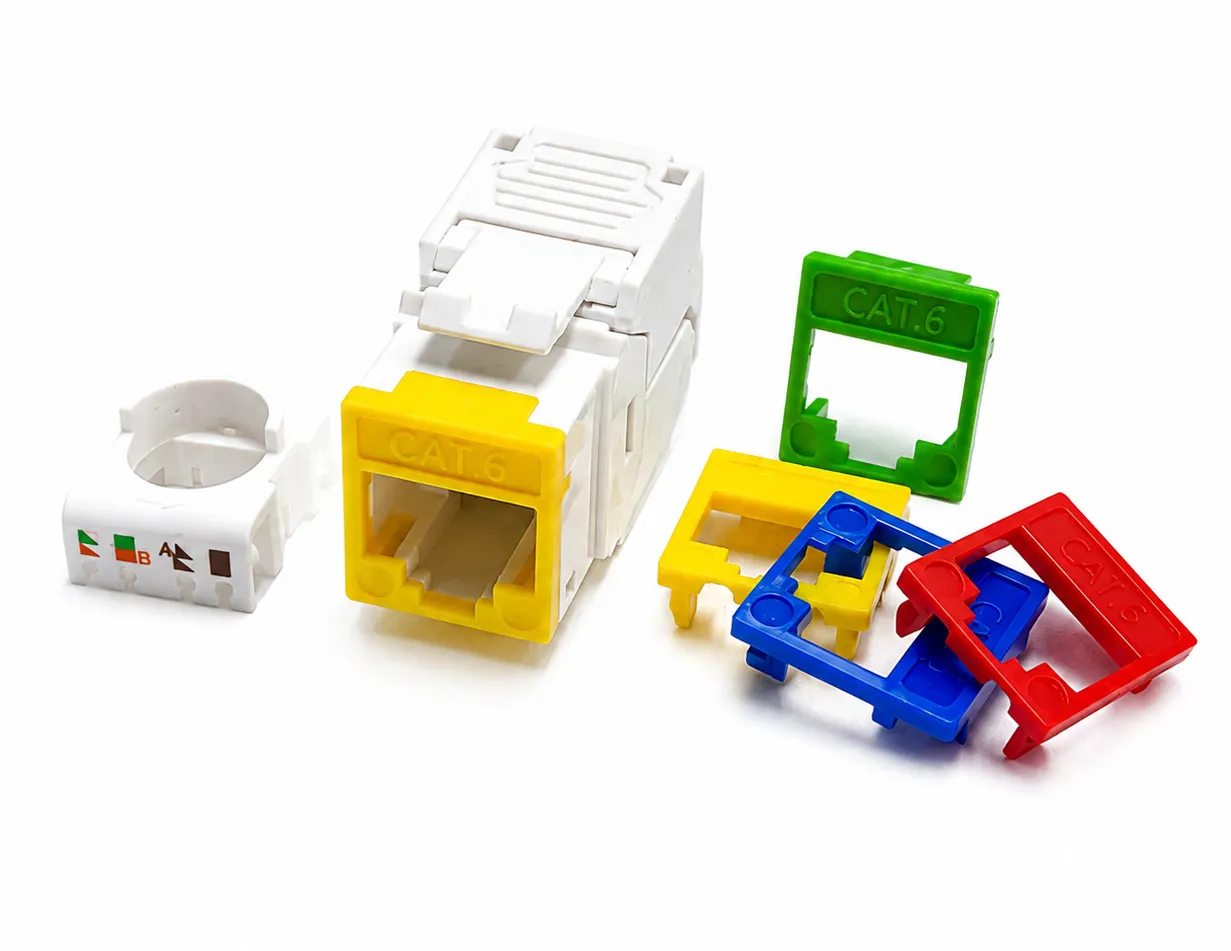

Basic Data of UTP Cat.6 Keystone Jack 180 Degree with Color-coded Front Frame

Product No.: CL-KJU-C625

Delivery Time: 15-20 days

MOQ（Neutral): 2000pcs

Package: Neutral or OEM Package

Payment Term: Western Union, Paypal, T/T

Product Features of UTP Cat.6 Keystone Jack 180 Degree with Color-coded Front Frame

PCB material: FR-4 T=1.2mm
IDC LIFE: 200 Times Max
Inserting Duration: 750 times.
Operation Temperature: -40℃ to 70℃
IDC Contact material: Phosphor bronze with 50 micro-inch Tin-Lead plated
Connecting: RJ45 Port for UTP Patch Cord and the IDC for UTP horizontal cabling.
Fitting for Cat.6 Cabling system, can also be used in Cat.6 and Cat.5e cabling system.
According to the standard of ISO/IEC 11801:2002 Class E&ANSI/TIA/EIA/56B2-1 Cat.6 standard.

Key Features
Color-coded front frame supports easier identification and maintenance；
180°design supports easier cable management;
Faster installation and maintenance efficiency
